handlebar risers for armlength-challenged riders

25909 Views 26 Replies 14 Participants Last post by Nobby, Jan 1, 2021

kuri77

Discussion Starter · May 16, 2017

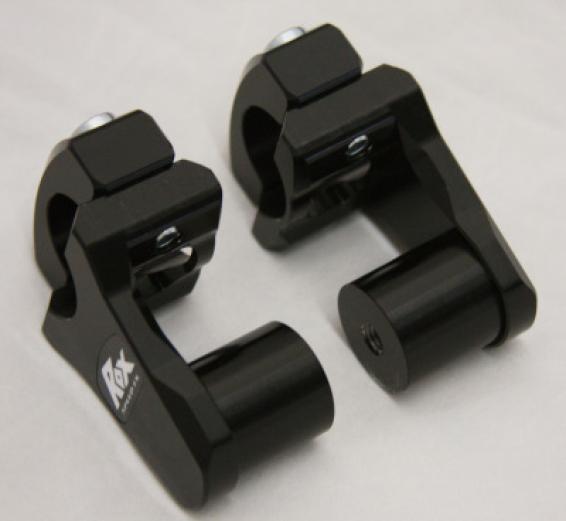

Both my daughters have short arms and would like the bars on their 500s back an inch or so. I have a set of Roxx Risers on my Sportster that work great. I have ones similar to this pic below. Question is would anyone like to venture a guess as to whether there is enough give in the clutch cable, brake line and throttle cables to allow an inch and a half rearward movement? If pulled back at a 45 degree angle it would be around an inch and a half movement not the full 2 inches as if they were vertical. Best scenario - someone has already done this successfully and can report on their efforts.

See less See more

1 - 20 of 27 Posts

shortyg83

· #2 · May 16, 2017

kuri77 said:
Both my daughters have short arms and would like the bars on their 500s back an inch or so. I have a set of Roxx Risers on my Sportster that work great. I have ones similar to this pic below. Question is would anyone like to venture a guess as to whether there is enough give in the clutch cable, brake line and throttle cables to allow an inch and a half rearward movement? If pulled back at a 45 degree angle it would be around an inch and a half movement not the full 2 inches as if they were vertical. Best scenario - someone has already done this successfully and can report on their efforts.

They won't work. The speedo mount is built into the current handle bar clamps. You need risers that would keep the top of the stock clamps at the top.

shortyg83

· #3 · May 16, 2017

This will
HM Racing Parts

kuri77

Discussion Starter · #4 · May 16, 2017

shortyg83 said:
This will
HM Racing Parts

Great find, thanks. Just shot them off an email to find out if they are useable without any modifications to wiring, cables or hoses.

shortyg83

· #5 · May 16, 2017

kuri77 said:
Great find, thanks. Just shot them off an email to find out if they are useable without any modifications to wiring, cables or hoses.

They are, since they are Honda Genuine made accessories for this bike

waz00z

· #6 · May 17, 2017

Hi ! i also have short arms and would like the bars moved inwards about 2 inches.. the bars are about the right height.

please post your results - a before and after picture would be great..

waz00z

· #7 · May 17, 2017 (Edited)

what is the bar diameter of the rebel 500? as i found this on revzilla for 7/8 inch bars

https://roxspeedfx.com/products/2-pivoting-bar-risers-for-7-8-handlebar

if they leaned back i reckon you could get 45mm (1 4/5 inches) closer with about a 1 inch rise

See less See more

waz00z

· #8 · May 17, 2017

The above ones are 2 inc risers and they also make a 3.5 inch riser to bring the bars wayyy back!

shortyg83

· #9 · May 17, 2017

waz00z said:
The above ones are 2 inc risers and they also make a 3.5 inch riser to bring the bars wayyy back!

Did you look at this thread you posted in at all? They won't work with the stock speedo. Its literally the same thing in the first post.

shadow

· #10 · Jun 12, 2017

shortyg83 said:
They are, since they are Honda Genuine made accessories for this bike

I just ordered these. Will probably take a few weeks to arrive in the US but I'll post pics and a review once I have them installed.

Reactions: 2

shadow

· #11 · Jul 10, 2017

shadow said:
I just ordered these. Will probably take a few weeks to arrive in the US but I'll post pics and a review once I have them installed.

I installed the risers, and sad to say that they are not enough for me. I'll have to get a new handlebar that will bring it closer to my arms. Also - after installing these I can no longer use the Honda windshield. It has no-where to attach now :frown2::crying:

John

· #12 · Jan 14, 2018

Those are the same I just purchased. I will need to re-route cables and possibly splice some wiring. Best of all with these the speedo can stay where it is.

kjeck

· #13 · Jan 21, 2018

I managed to get even larger risers on my 500, with a RAM mount for the gauges. There was plenty of cable, just needed some rerouting. Here's the post.

egraham

· #14 · Jan 23, 2018

2

I'm in the process of adjusting fit for my girlfriend on her Rebel 500. I ordered a few different bars for her to try and she settled on the Biltwell Zed. It puts hand position farther back, up, and more narrow. There is no way the stock brake line will reach so I had to order a custom line and manifold from Spiegler. The stock Honda brake line is permanently fixed to the manifold. Accessing the manifold to remove it is a big PIA. After removing the gas tank, most of the connectors have to be removed along with the ignition to be able to remove the plastic housing that sits under the tank. It's amazing how much electronics they were able to stuff between the tank and the engine. I'm not looking forward to reassembling all of it. I'm debating getting an engine block off plate and removing the PAIR valve just so there is one less thing I have to try reassemble.

As far as I can tell, this has to be done every time you change the spark plugs because it doesn't seem like there is enough access space without removing the electronics bundle. See images.

See less See more

Reactions: 1

RupertC

· #15 · Jan 23, 2018

So, you dig little deeper in that mess than me, it is very tight there, indeed and every time doing sparkplugs and valves it has to be done

; couldn't image how to manage it, if here happens what did with my Yammy Virago 250 recently (both sparks quit spark at the same time

)

[email protected]

· #16 · Jun 28, 2019

shortyg83 said:
They won't work. The speedo mount is built into the current handle bar clamps. You need risers that would keep the top of the stock clamps at the top.

Hi,
this might be a silly question but why can't the standard top clamp work with those Rox Risers? I know they come with their own top clamp but why can't I just use the stock top clamp in place of the one they come with?

gilzow

· #17 · Aug 21, 2020

kuri77 said:
Both my daughters have short arms and would like the bars on their 500s back an inch or so. I have a set of Roxx Risers on my Sportster that work great. I have ones similar to this pic below. Question is would anyone like to venture a guess as to whether there is enough give in the clutch cable, brake line and throttle cables to allow an inch and a half rearward movement? If pulled back at a 45 degree angle it would be around an inch and a half movement not the full 2 inches as if they were vertical. Best scenario - someone has already done this successfully and can report on their efforts.

Yeah, yeah, i know i'm raising an old thread from the dead, but I'm in the same boat. Small rider, would like the controls just a little more rearward to make it more comfortable. Did you ever figure out a solution for your daughters?

Frankster

· #18 · Aug 21, 2020

The guy has not logged in since June 2018. I doubt you'll get an answer from him.

If all you need is a minor adjustment, go for the H2C/SevenSpeed risers that are designed for the Rebel. If you have an ABS version (which I assume based on your profile), the front brake line is too short and those risers are the only ones that will fit without getting a new hose or a hose extender.

Reactions: 1

gilzow

· #19 · Aug 21, 2020

Frankster said:
The guy has not logged in since June 2018. I doubt you'll get an answer from him.

I'll admit, I didn't look at his profile. Was searching for solutions on moving the handlebars rearward, and this post popped up in my search results. Figured I'd ask just to see if he had come up with a solution.

Frankster said:
If all you need is a minor adjustment, go for the H2C/SevenSpeed risers that are designed for the Rebel. If you have an ABS version (which I assume based on your profile), the front brake line is too short and those risers are the only ones that will fit without getting a new hose or a hose extender.

Will look into those. I definitely don't want to have to mess with a new hose or extender if I can get away with it. Right now, I just come forward on the seat, about an inch and a half, but would prefer to sit back fully in the seat. Shorty's link above no longer works, so you mentioning the name helped me locate the risers. Thanks!

Akela2019

· #20 · Aug 23, 2020

Hi there, my 500 has both the 1” riser & the H2C pullbacks. No cable mods were needed & I just had my local dealer/service install them. No issues. Hope this helps.
P.S. Zoom in on the bars and you’ll see what it looks like.

See less See more

Reactions: 1
